To complement our products, we offer several accessories:

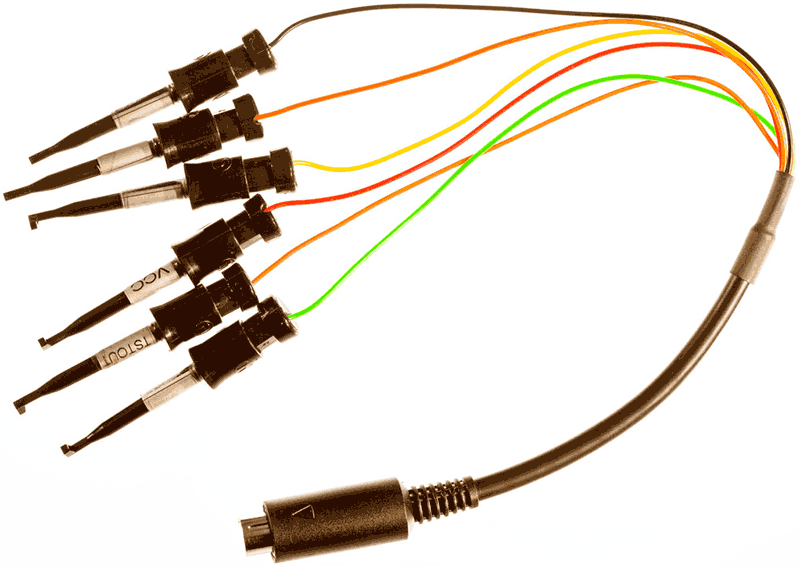

Mini DIN Test Probe
To have lab equipment connected to Connii, Connii MM 2.0, Audrii, Tracii XL or Tracii XL 2.0 we provide a 25 cm long cable with miniature clamp-type test probes. Each line has a tag to identify the signal. Have a look at the cable.
Full Mini-DIN (PS/2) Cable
The easiest way to connect Tracii XL 2.0, Connii MM 2.0 and Optii / Levii
pin | signal |
|---|---|
1 | SDA |
2 | reserved |
3 | GND |
4 | VCC |
5 | SCL |
6 | reserved |
USB Cable
To connect our USB products Connii, Connii MM 2.0, Tracii XL and Tracii XL 2.0 to the PC a USB cable (USB-A to USB-B) is necessary. The cable has a length of about 1.8 m. The cable may have a different color than the picture.
Stocko Cable
The simplest way to connect Tracii 400 to Audrii is to use this cable with a Stocko connector on either side. The cable is about 30cm long.
Stocko Connector Set
If you need to connect Tracii 400 or Audrii to your own connection type, you can order a set of connectors. Their Stocko part number is MKF 13264-1-0-404. They are connected via insulation displacement (IDC, German: Schneidklemme) to the 24 AWG wire (0,25mm). The set contains six connectors.

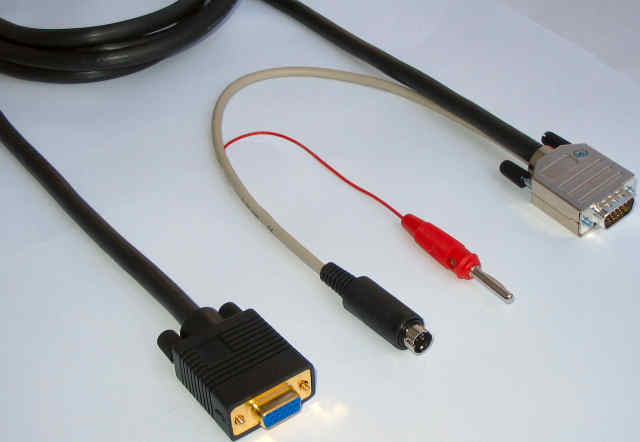

VGA Cable for Vesa DDC Access
Today almost all PC monitors and flat displays contain an "Enhanced Extended Monitor Identifaction" (E-EDID) EEPROM, which contains informations about the features of the unit. This cable gets access to the special data lines inside the VGA cable and make them available for control and measuring purposes. This is cable is quite helpful for using Tracii XL / Tracii XL 2.0 as a analyser / configurator for the E-EDID (VESA DDC) data of monitors and displays. More information on this feature is available here.
The cable is a 1.8 m VGA male / female cable plus telos I2C connector plus I2C reference voltage connector.
